Doors
Aluminium door systems offering long-lasting and highly secure performance.
Stormframe II
The High Traffic Door
The Stormframe STII High Traffic aluminium door provides the ideal solution for a wide range of commercial applications. Since launch, it has been recognised as an exceptional product in terms of performance and fabrication. This product integrates seamlessly with Elegance 52 Curtain Walling and the Dualframe Si Window System.
Large Sizes
- Door leaf glazing up to 44mm
- Weights up to 100kg
Diversity of Applications
- PAS24 and Secured by Design Accredited
- 2010 Equality Act Compliant
- Range of accessories designed to fit easily within frame and door profiles
Diversity of Forms
- Sleek square-cut profile
- Hardware is designed to fit easily within door frame and profile
- Available with dual-colour options
High Performance
- Water Tightness: 100 Pa
- Air Permeability: 600 Pa
- Wind Resistance: 1200 Pa

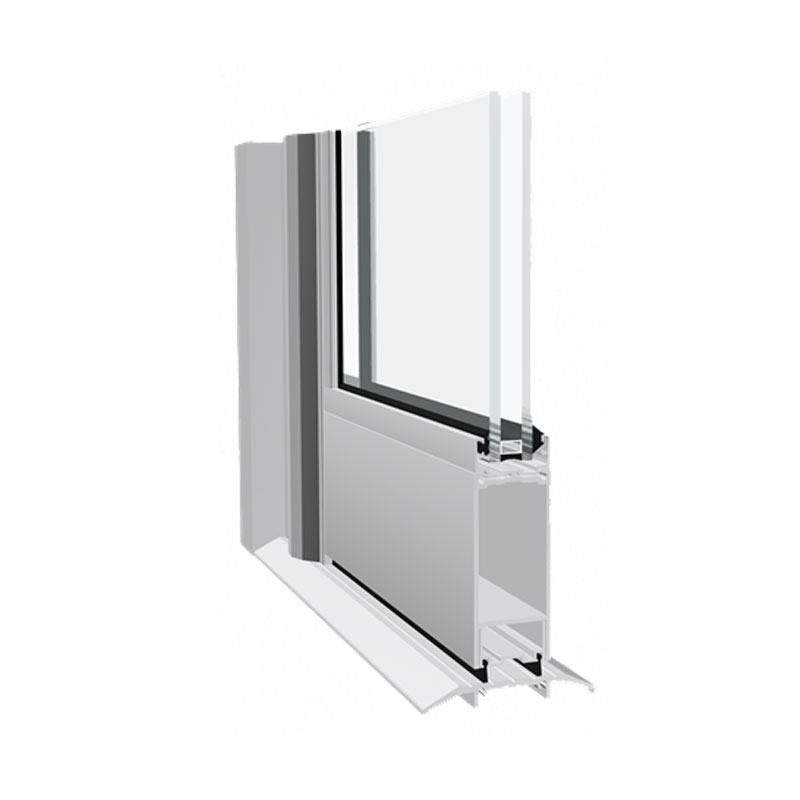

202 Commercial Door
The Non-Thermally Broken Door
The 202 Commercial Door is a non-thermally broken aluminium framing system. This modular product can incorporate single or double doors and automated sliding doors having being designed for entrance screens and shopfronts.
Large Sizes
- Can accommodate panels and glass of 6mm, 10mm, and 24mm thickness
- Max height: 3000mm
- Max door leaf weight 90kg
Diversity of Forms
- Choice of Pivot available including anti-finger trap stile or rebated doors
- Wide range of colour and finish options and dual-colour capability
High Performance
- Polyester powder coat available to BS 6496
- Anodised colours available to BS 3987 Grade AA25
Dualsecure
For Traditional and Contemporary Styling
Suitable for domestic and light commercial markets, the Dualframe 75 aluminium door can be used for traditional and contemporary styling. By using a unique patented polyamide strip with an integral bead retention leg the projection of the door leaf profile is minimised. Dualframe 75 stiles are designed to accept full-length Eurogroove to ensure compatibility with a wide range of hardware.
Large Sizes
- Single Door (STD) Max size: 1250mm x 2500mm (WxH)
- Double Door Max Size: 2446mm x 2500mm (WxH)
- Max weight: 100kg
Diversity of Applications
- Standard or anti-finger trap hinge options
- Weather rated low threshold cill option
- PAS 24 and Secured by Design Certified
Diversity of Forms
- Slim Sightlines ensure maximum natural light
- Extensive colour and finish options
- Large selection of hardware offered
- Possibility of internal or external beading
High Performance
- Air Permeability: Up to 600 Pa*
- Water Tightness: Up to 600 Pa*
- Wind Resistance: Up to 1600 Pa*

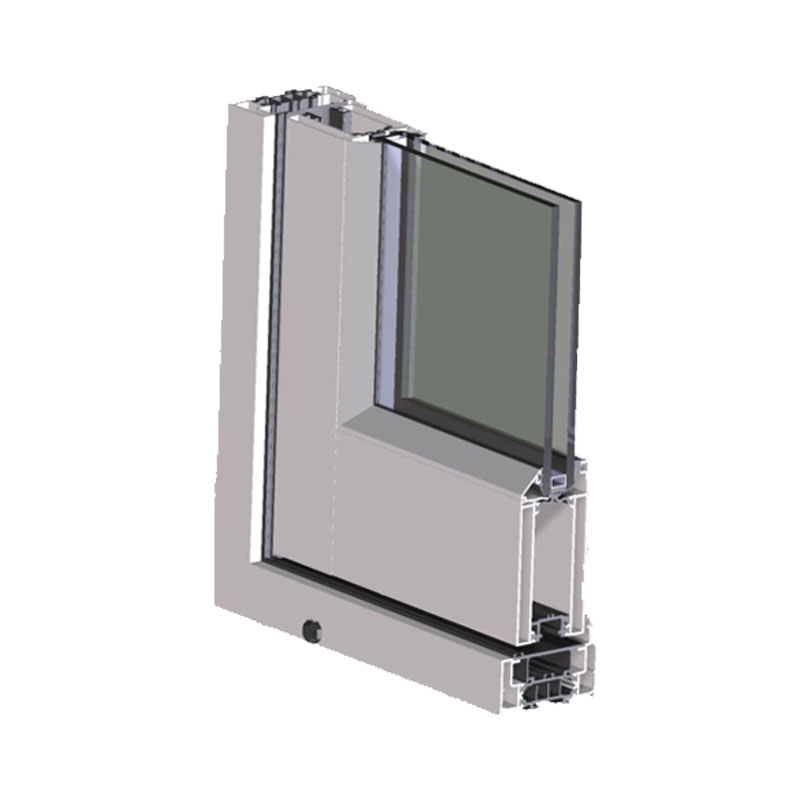

Crown Resdential Door
Strength and Performance
The Crown range of doors were designed for their aesthetics, strength, and durability. These fit into domestic projects easily with “front” and “back” door styling options. Whichever you choose, you can be assured that your home is left secured each and every time.
Large Sizes
- Insulating Glass units of 24mm and 28mm accommodated
- Max weight 120kg
Diversity of Applications
- Strong Three-chamber construction
- Fully adjustable security hinges
- Patented DualSecure locking mechanism
Diversity of Forms
- Wide range of colour and finishes available
- Dual-colour options
- Square-cut traditional wooden door aesthetic
High Performance
- Air Permeability: Up to 600 Pa
- Water Resistance: Up to 150 Pa
- Wind Resistance: Up to 1200 Pa

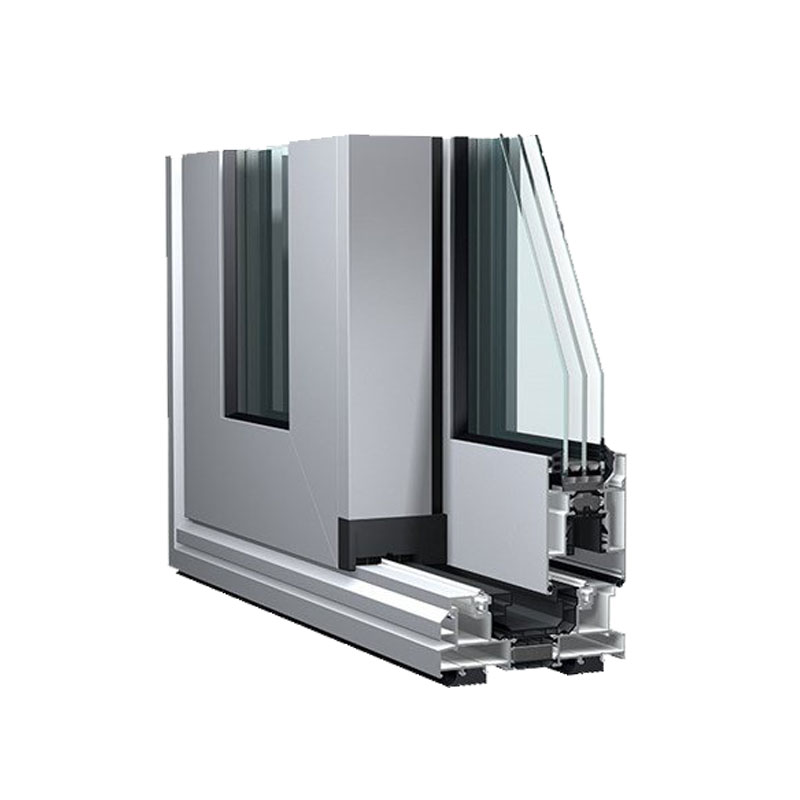

Confort
The Ultimate Slider
Confort 160 is a high performance thermally insulated sliding door system, with a user-friendly (lift-) slide action. The system, with an attractive aesthetic line, is durable, stable and remarkably energy efficient. With a maximum vent weight up to 400 kg large glazed areas are easily attainable.
Large Sizes
- Accommodates glazing up to 35.5mm
- Weight up to 240kg
Diversity of Applications
- PAS 24 and Secured by Design Certification
- Confort 125 – 1-rail, sliding vent & fixed screen
- Confort 125 – 2 rail, 1,2,3 or 4 vents with fixed and sliding vents having the same sightline
- Confort 125 – 3 rail, combination of a max 6 vents
Diversity of Forms
- Gutter section frame allows floor finishes to be flush and avoids thresholds
- Multipoint locks can be applied
- Can include a night vent position, assuring healthy building ventilation
High Performance
- Air Tightness – 600Pa
- Water Tightness – 300Pa
- Wind Resistance – 1600Pa
- Burglary Resistance – PAS 24
- Impact Test – Class 5

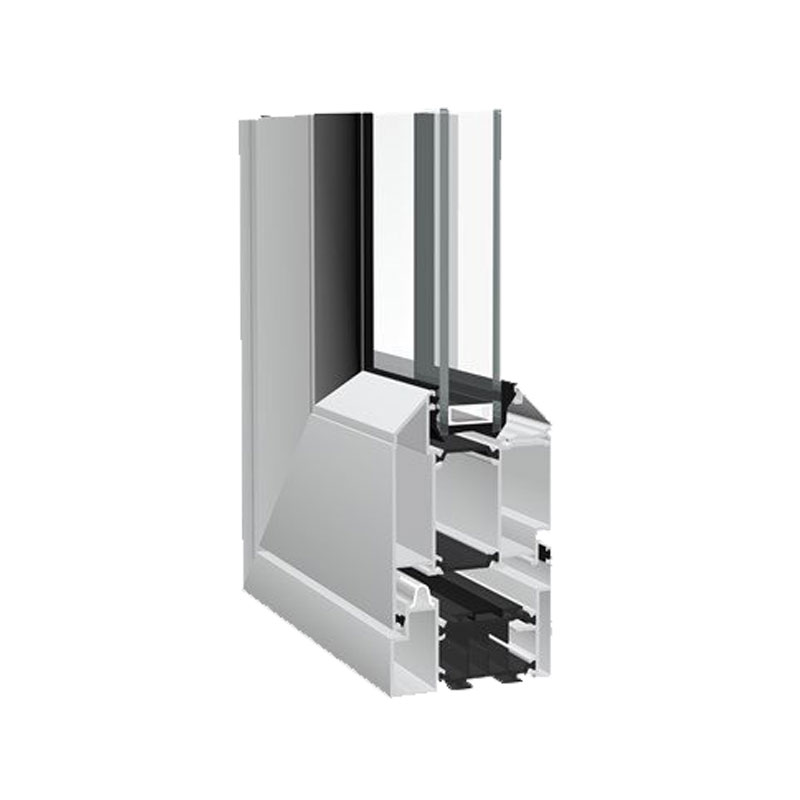

Crown Folding Sliding
Strength, Stability and Slim Design
Combining form and function, the Crown Patio Doors can be tailored to suit any project.
Large Sizes
- Maximum Leaf Width: 1042mm
- Minimum Leaf Width: 622mm
- Maximum Leaf Weight: 100kg
- Maximum Door Height: 3000mm
Diversity of Applications
- Opening options include In & Out, and Left & Right hand
- Up to 7 pane option
- Rebated leaf on Head, Cill and Locking Jamb provides high security & improved weather performance
- Low threshold option available
Diversity of Forms
- Continuous hinges provide streamlined aesthetics, require no adjustment and prevent finger trapping
- Polyamide head guide track provides smooth and quiet operation, whilst improving thermal performance
- Combined Shootbolt and D Handle
High Performance
- Open-out:
- Water Tightness: Up to 600Pa
- Air Permeability: Up to 600Pa
- Wind Resistance: Up to 1600Pa

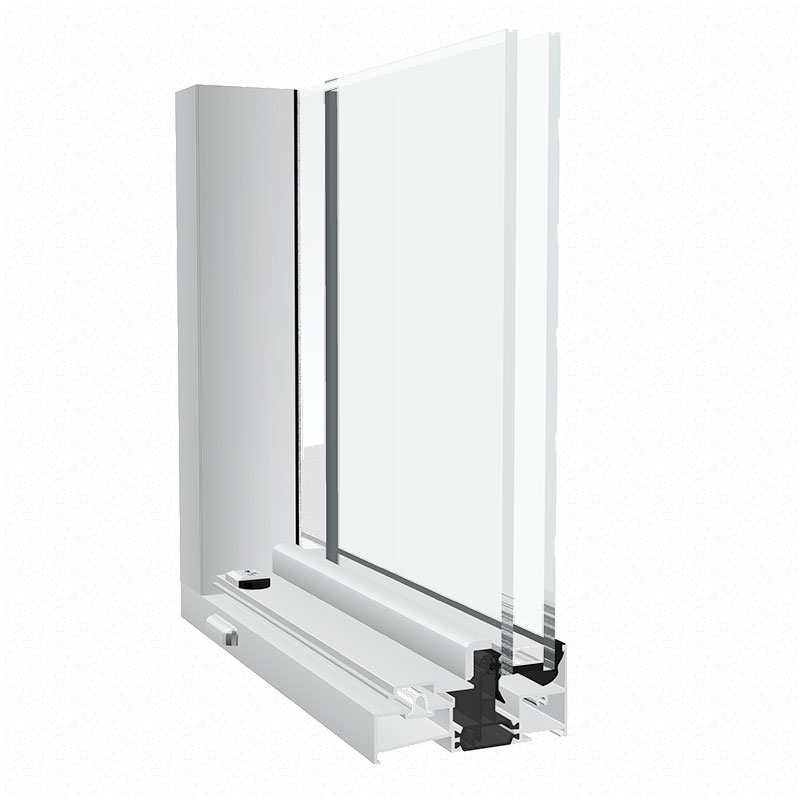

Crown Patio
Strength, Stability and Slim Design
Combining form and function, the Crown Patio Doors can be tailored to suit any project.
Large Sizes
- Glazing thickness: 28mm
- Maximum weight: 120kg per pane
- Maximum height: 2500mm
- Maximum Width of 3205mm – 6353mm depending on configuration
Diversity of Applications
- Larger Doors up to 3m in height
- More glass and plenty of light is achieved with inherent strength of design
- 2, 3 and 4 pane options to open the space
Diversity of Forms
- Wide range of colour and finish options
- Accessories provided to match the profiles
- Dual-colour options available
High Performance
- Water Tightness: Up to 300 Pa
- Air Permeability: Up to 300 Pa
- Wind Resistance: Up to 800 Pa
